Your EV Has a Brain. It's Called the BMS.

The BMS does not just protect the battery — it defines what the battery is capable of. A great cell with a bad BMS will underperform and fail early. A mediocre cell with an excellent BMS will outperform its datasheet.

Your EV's battery pack can contain anywhere from 100 to 8,000 individual lithium-ion cells wired together in series and parallel. Each one operates within tight voltage, temperature, and current limits. Exceed any of these limits and the cell degrades rapidly or fails catastrophically. The Battery Management System — BMS — is the electronic brain that ensures every cell in the pack operates within those limits, every moment you drive, charge, or park.

Four Functions, One System

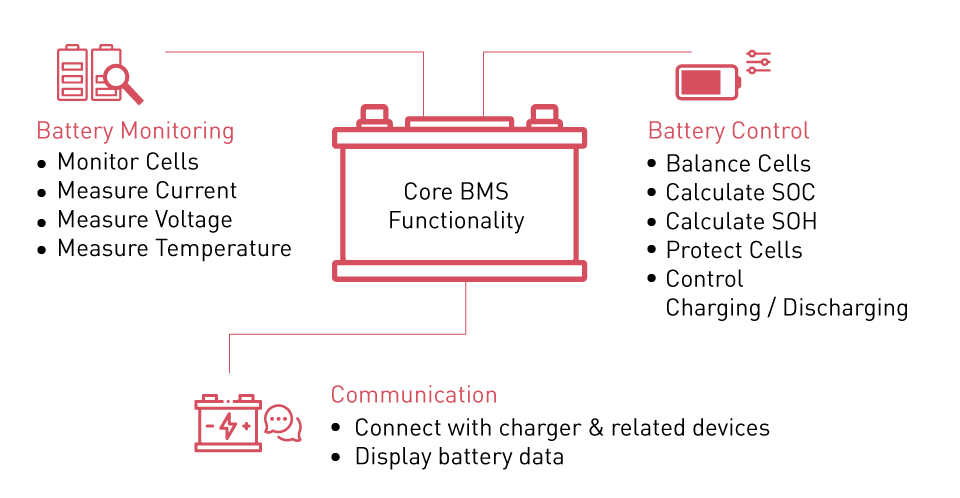

The BMS operates four distinct functions simultaneously:

1. Monitoring — The BMS measures cell voltages, pack current, and cell temperatures continuously. A 96-cell pack may have voltage sensors on every cell (96 measurements), temperature sensors at 10–20 points in the pack, and a current sensor on the main bus. These measurements are sampled at 10–100 times per second and fed into all other functions.

2. Protection — If any measurement exceeds safe limits, the BMS commands the main contactors (high-voltage relays) to open, disconnecting the battery from the vehicle. Common protection triggers:

• Cell overvoltage (>4.20 V for NMC, >3.65 V for LFP)
• Cell undervoltage (<3.0 V for NMC, <2.5 V for LFP)
• Overcurrent (>2–3C continuous, >5–10C peak)
• Over-temperature (>55–60°C cell temperature)
• Under-temperature for charging (<0°C for most chemistries)

3. Estimation — The BMS computes State of Charge (SOC — how much energy remains, displayed as %) and State of Health (SOH — how much the battery has degraded since new, expressed as % of original capacity). Both are estimated, not directly measured, using algorithms that combine sensor readings with battery models.

4. Balancing — The BMS manages cell voltage equalisation to ensure no individual cell becomes significantly out of step with the rest of the pack.

# BMS decision loop -- simplified pseudocode
def bms_main_loop(cell_voltages, cell_temps, current_A):
    """
    Runs every 10 ms. Checks safety, estimates SOC, sends CAN.
    """
    # Step 1: Read sensors
    v_min = min(cell_voltages)   # weakest cell voltage
    v_max = max(cell_voltages)   # strongest cell voltage
    t_max = max(cell_temps)      # hottest cell
    imbalance_mV = (v_max - v_min) * 1000

    # Step 2: Protection checks
    if v_max > 4.20:
        stop_charging()          # over-voltage
    if v_min < 2.80:
        disconnect_load()        # under-voltage
    if t_max > 60.0:
        throttle_power()         # over-temperature

    # Step 3: Balance if imbalance > 20 mV
    if imbalance_mV > 20:
        start_passive_balancing(cell_voltages)

    # Step 4: Estimate and report SOC
    soc = coulomb_count(previous_soc, current_A, dt_s=0.01, Q_Ah=50)
    send_can_message(soc=soc, v_min=v_min, t_max=t_max)

Why Cell Balancing Matters

All cells in a series pack carry the same current, but cells are never perfectly identical. Manufacturing tolerances create small differences in capacity, impedance, and self-discharge rate. Over hundreds of cycles, these small differences accumulate:

• Cell A has 10% higher capacity than Cell B
• At 100% pack SOC, Cell B is overcharged relative to its individual limit
• At 0% pack SOC, Cell B is deeper discharged than Cell A
• The weakest cell determines both when charging stops and when driving stops

Without balancing, the weakest cell in a pack degrades faster than the others, creating a positive feedback loop — the weakest cell gets weaker, until it fails and forces the entire pack to be replaced.

Most commercial EV BMS designs use passive balancing because it is simple, reliable, and sufficient for packs where cells are well-matched from manufacturing. Active balancing becomes necessary in packs with high cell-to-cell capacity variance, or in high-cycle applications where initial variance amplifies with use.

# What the dashboard percentage actually represents
def display_soc(raw_soc: float, soh: float = 1.0) -> int:
    """
    raw_soc: 0.0-1.0 from BMS coulomb counter
    soh:     State of Health (1.0 = new, 0.8 = 80% capacity remaining)
    Returns: integer percentage shown on dashboard
    """
    # Some OEMs buffer 5% at each end to protect battery longevity
    LOWER_BUFFER = 0.05   # 0-5% SOC hidden from user
    UPPER_BUFFER = 0.05   # 95-100% SOC hidden from user

    usable_soc = (raw_soc - LOWER_BUFFER) / (1.0 - LOWER_BUFFER - UPPER_BUFFER)
    usable_soc = max(0.0, min(1.0, usable_soc))
    return round(usable_soc * 100)

print(display_soc(0.92))   # -> 90% shown on dashboard
print(display_soc(0.05))   # -> 0% (at lower buffer edge)

The Thermal Management Interface

The BMS does not run the thermal management system directly — in most architectures, a dedicated Thermal Management Controller does that. But the BMS provides the temperature measurements and requests that drive thermal decisions:

• Too cold for charging: BMS signals thermal system to heat pack before accepting charge current
• Too hot during discharge: BMS requests cooling and/or derates maximum discharge current
• Charging derating: BMS reduces maximum charge current as any cell temperature approaches the upper limit (typically 45°C for charging, 55°C for discharging)

In Indian summer conditions, the thermal management interface is critical. A BMS that cannot communicate cell temperatures with sufficient resolution and speed to the thermal controller will allow cells to overheat during DC fast charging at 45°C ambient — an extremely common scenario at Indian highway charging stations.

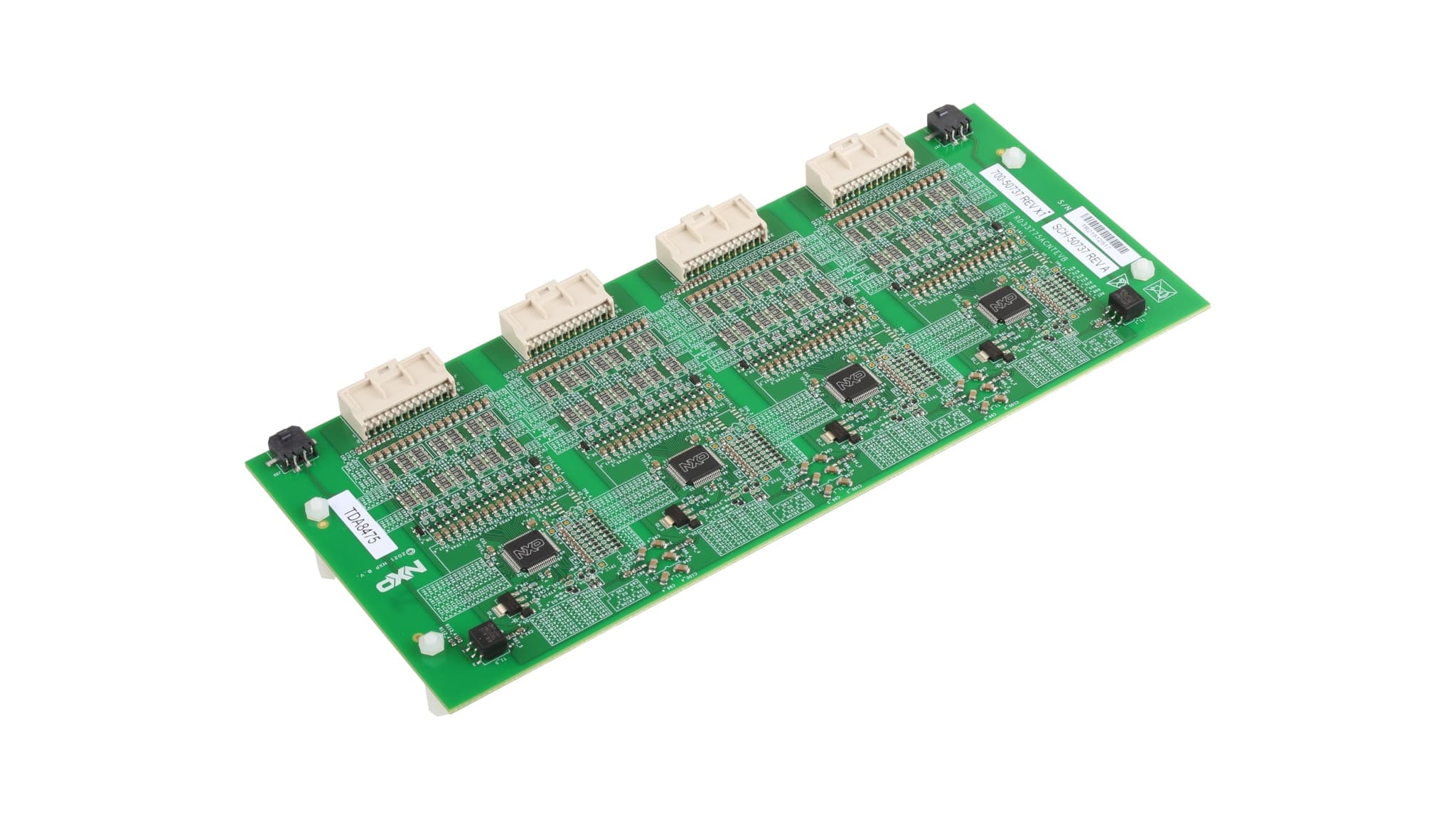

BMS Hardware Architecture

AIS-156 and Indian BMS Requirements

In India, BMS design must satisfy AIS-156 (Automotive Industry Standard 156), which mandates specific protections and test requirements for EV battery systems:

• Overcharge protection: BMS must disconnect the battery before any cell exceeds its maximum voltage
• Over-discharge protection: BMS must disconnect before any cell falls below minimum voltage
• Short circuit protection: Response within 10 ms of a short circuit event
• Thermal runaway detection: BMS must detect the onset of thermal runaway in any cell and trigger appropriate response
• Isolation monitoring: Continuous monitoring of high-voltage isolation from the vehicle chassis, with alert at <500 Ω/V isolation resistance

AIS-156 Phase 2 (effective from October 2023 for new type approvals) added thermal runaway propagation requirements — the pack must provide 5 minutes of warning before any passenger compartment hazard from a single-cell thermal runaway event.
