UL 2580 abuse tests do not ask 'will the battery survive?' — they ask 'when the battery fails, will it kill someone?' That distinction changes everything about how you interpret the pass criteria.
- UL 2580 is a US/international abuse safety standard for EV batteries; pass criteria require no fire, no explosion, and no hazardous ejection — not that the cell survives the test.
- The impact test's 2-hour post-test observation window catches delayed thermal runaway from latent internal shorts; visual checks alone are insufficient — continuous thermocouple monitoring is required.
- Overcharge test results directly define the BMS OVP threshold error budget; for NMC 811 the margin between 4.20 V cutoff and gassing onset is dangerously small without proper error accounting.
- Thermal stability at 130 °C validates separator integrity only — it does not characterise cathode decomposition onset, which requires separate ARC testing.
- Abuse test data should drive cell selection and pack architecture decisions at the design stage, not just satisfy a compliance checkbox at the end.
A battery pack that passes electrical performance testing, thermal cycling, and vibration testing can still fail catastrophically in a real-world abuse event. UL 2580 — the UL standard for batteries for use in electric vehicles — exists because performance testing is necessary but not sufficient. Abuse testing probes the failure modes that require physical and chemical boundary violations to expose. Understanding the test matrix is not just a compliance exercise: the results should directly drive cell selection, pack architecture, BMS threshold design, and thermal barrier specification.
Structure of the UL 2580 Test Matrix
UL 2580 organises tests into five categories, each targeting a different failure trigger mechanism:
| Category | Tests | Levels | Primary Hazard Probed |
|---|---|---|---|
| Mechanical | Crush, Impact, Immersion, Drop, Vibration, Shock | Cell, Module, System | Physical damage → internal short circuit |
| Thermal | Thermal stability, Forced temperature exposure (oven) | Cell, Module | Heat-triggered exothermic reactions |
| Electrical | External short circuit, Overcharge, Over-discharge | Cell, Module, System | Electrical abuse → thermal runaway or copper dendrite formation |
| Environmental | Salt fog, Altitude, Humidity | System | Long-term environmental degradation → insulation failure |
| Handling | Projectile impact | System | Post-crash scenario — debris penetration of deployed pack |
The critical design principle: tests are intended to provoke worst-case conditions, not typical-use conditions. The pass criterion is not 'the cell survives' — it is 'no fire, no explosion, no hazardous material ejection that would endanger occupants or first responders.' A cell may be completely destroyed by the test and still pass, as long as destruction is orderly rather than violent.
Different failure modes emerge at different scales. Crush and impact at the cell level characterise the chemistry's intrinsic abuse response — the fundamental thermal runaway risk. Module-level testing reveals how adjacent cells respond to a triggered failure (propagation). System-level testing verifies that BMS disconnect, pack enclosure, and venting paths function as designed when the real pack experiences an abuse condition. A cell that passes cell-level crush testing can still be part of a module that fails module-level crush if inter-cell thermal barriers are inadequate.
Mechanical Abuse Tests: Three That Matter Most
Crush test: A flat plate applies force at 1.5 mm/s until force reaches 1,000× the cell's mass in kg-force, voltage drops by >100 mV, or the cell is crushed to 85% of original dimension. The test probes internal short circuit via separator rupture. For LFP cells, the thermally stable cathode chemistry usually prevents violent runaway — temperature may rise 30–60°C and stabilise. For NMC811 at high SOC, crush frequently triggers violent runaway with flame ejection. What teams miss: The standard also requires module-level crush at intermediate SOC (50%). Many teams test only at 100% SOC and miss separator failure modes that manifest differently at partial lithium intercalation states.

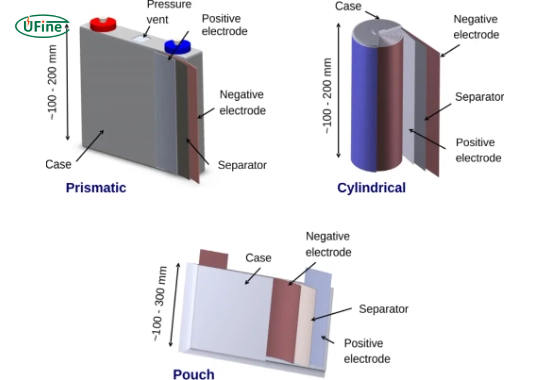

Impact test: A 9.1 kg mass falls 610 mm onto a metal bar placed across the cell. The test probes puncture from above — simulating road debris penetration. For cylindrical cells, the impact creates a localised separator rupture. For prismatic cells, the aluminium case distributes load; module-level impact testing is more structurally revealing.
What teams miss in impact testing: The 2-hour post-impact observation window. Many cells show minimal immediate response: voltage drops slightly, temperature rises 5–10°C, apparent pass. The dangerous failure mode is delayed thermal runaway, where a latent internal short slowly builds heat over 20–90 minutes. Visual observation misses this. Continuous thermocouple monitoring at 30-second intervals throughout the full 2-hour window is required — yet many teams conduct visual checks only every 15–20 minutes.
A cell that passes visual inspection after an impact test is not confirmed safe until continuous temperature monitoring for 2 full hours shows stable or declining temperature. An initial temperature rise of 5–10°C followed by stability is reassuring. A 5°C rise that continues to increase at 0.2–0.5°C per minute is a developing thermal runaway — the cell should be transferred to a blast enclosure before the self-heating threshold is reached. Teams that do not measure this trajectory miss the developing event.
Most UL 2580 mechanical and thermal abuse tests are conducted at 100% SOC, which represents the worst-case stored energy and the highest lithium plating level in the anode — maximising the exothermic reaction energy if thermal runaway occurs. UL 2580 does require module crush at 50% SOC as well, since partial lithiation creates different internal stress distributions that can alter separator failure modes. Testing at lower SOC makes failure modes appear more benign — which is why compliance testing at <100% SOC would systematically understate real-world risk at full charge.
Thermal Abuse Tests
Thermal stability test: Cell heated at 5°C/minute from ambient to 130°C, held for 30 minutes. This primarily probes separator integrity (polyethylene separators melt at 130–150°C) and early electrolyte decomposition reactions.
What teams miss: 'Passes 130°C for 30 minutes' does not mean 'thermally stable above 130°C.' A cell can pass UL 2580 thermal stability and still enter violent thermal runaway at 160°C — which is achievable in a real pack fire scenario where adjacent cells are burning. The thermal stability test characterises separator behaviour, not cathode decomposition onset. Separate ARC (Accelerating Rate Calorimetry) testing is needed to characterise the full thermal runaway onset temperature.
Forced temperature exposure (oven test): Cells in a 60°C forced-convection oven for 7 days. Probes calendar aging acceleration and long-duration hot storage effects — electrolyte oxidation at the cathode surface and gas generation inside sealed cells. For Indian applications where vehicle cabin temperatures regularly reach 55–65°C in summer parking, this test has direct operational relevance.
Electrical Abuse Tests
External short circuit test: Fully charged cell shorted through ≤5 mΩ for 1 hour or until temperature stabilises. For a 100 Ah LFP cell with 1.2 mΩ DCIR at 3.3V OCV, theoretical short current exceeds 2,700 A. Real values are lower due to cable resistance but still in the hundreds of amperes for large-format cells.
LFP cells generally perform well in external short tests — their relatively high internal resistance and thermally stable chemistry allows the current to self-limit as temperature rises. NMC cells with lower internal resistance can generate dangerous temperatures.
Overcharge test: Cell charged at standard rate to 200% of rated capacity (double the designed full-charge voltage endpoint). This is the most revealing test for understanding the margin between normal operation and catastrophic failure.
| Chemistry | Gassing onset voltage | Runaway risk at 200% overcharge | BMS OVP threshold |
|---|---|---|---|
| LFP | ~3.8 V/cell | Low — elevated temperature, no flame typical | 3.65 V |
| NMC 622 | ~4.3 V/cell | High — oxygen release, flame possible | 4.20 V |
| NMC 811 | ~4.2 V/cell | Very high — rapid violent runaway | 4.20 V |
| NCA | ~4.25 V/cell | High | 4.15 V |
| LCO | ~4.3 V/cell | Very high | 4.20 V |
Over-voltage protection (OVP) in the BMS is not just a cycle-life protection function for NMC and NCA chemistries — it is a safety-critical function. The OVP threshold must be set with margin below gassing onset, accounting for measurement error (±10–30 mV typical), cell-to-cell voltage variation during dynamic charging (50–100 mV spread), and contactor opening delay. A 4.20V OVP threshold on NMC811 with ±30 mV measurement error provides less than 80 mV margin to gassing onset — inadequate for a safety function. The BMS design spec should show the full error budget: threshold + measurement error + dynamic variation + opening delay must all be below gassing voltage.
Over-discharge test: Cell discharged at C/3 rate to 0V, held for 24 hours. Probes copper dissolution from the anode current collector at very low voltages (below ~2.0V for graphite anodes), and the risk of copper replating as dendrites on subsequent recharge — creating internal short circuit risk in a cell that appears normal after discharge.
Over-discharge below ~2.0 V for graphite-anode cells dissolves copper from the anode current collector. The dissolved copper can replate as dendrites on subsequent recharge, creating metallic bridges through the separator that produce intermittent internal shorts — a failure mode that may not manifest for dozens of cycles after the over-discharge event. This makes the over-discharge test especially important for packs where BMS under-voltage protection may be marginal: a cell that reaches 0 V even once can become a latent safety hazard in an otherwise normal-looking pack.
Design-Stage Checkpoints from Abuse Test Results
UL 2580 testing should not only be conducted at end-of-design for compliance. Abuse test results at the cell characterisation phase drive pack design decisions:
| Test | Key Result to Extract | Design Implication |
|---|---|---|
| Crush | Temperature rise rate post-crush | Thermal barrier specification between cells in module |
| Impact | Time-to-runaway if it occurs | Observation period for post-crash BMS monitoring algorithms |
| Overcharge | Voltage at which gassing begins | BMS OVP threshold margin calculation |
| External short | Peak temperature at terminals and peak current | Fuse/pyrofuse current rating and response time specification |
| Thermal exposure | SOH after 7-day 60°C exposure | Thermal management upper operating limit validation |
| Thermal stability | Separator integrity at 130°C | Separator material selection for production cells |
For Indian commercial EV pack designs, the oven test result has direct operational implications. A cell that shows >5% capacity loss after 7 days at 60°C will degrade significantly faster in Indian vehicles that park in direct sun at 45–50°C ambient for extended periods. Pack thermal management must maintain cell temperature below the oven test temperature for calendar aging to remain within design assumptions. Packs without active cooling operating in Indian summer conditions are continuously running an accelerated version of the UL 2580 thermal exposure test.
Key Takeaways
- UL 2580 abuse tests verify that when a battery fails under defined conditions the failure is contained — no fire, no explosion, no projectile ejection — not that the cell survives the test.
- The impact test's 2-hour post-test observation window must include continuous thermocouple monitoring at 30-second intervals; delayed thermal runaway from latent internal shorts can develop 20–90 minutes after impact with no visible immediate response.
- Overcharge results define the BMS OVP error budget: for NMC 811 the margin between 4.20 V cutoff and gassing onset is less than 100 mV — OVP threshold must account for measurement error (±30 mV), cell-to-cell variation (50–100 mV), and contactor opening delay together.
- Thermal stability at 130 °C characterises separator integrity only; cathode decomposition onset (which can trigger runaway at 160 °C+) requires separate ARC testing and is not covered by this test.
- Abuse test data belongs in the design specification from cell selection onward, not only in the compliance report — crush results drive inter-cell barrier spec, overcharge results drive OVP design, and thermal exposure results validate the pack's cooling upper limit.
Part of the standards Series
Frequently Asked Questions
What is UL 2580 and who needs to comply with it?
What is the difference between a pass criterion of 'no fire' and 'no explosion'?
Why do teams so often fail the impact test observation period?
How does the overcharge test result inform BMS OVP (over-voltage protection) threshold design?
Does passing UL 2580 guarantee safe behavior in all real-world abuse scenarios?
