ISO 6469 is the foundational safety standard for electric vehicle high-voltage systems. While AIS-156 governs battery pack-specific safety in India, ISO 6469 governs the broader HV electrical architecture — insulation classes, isolation monitoring requirements, high-voltage interlock loops, post-crash safety, and the design principles that prevent an EV's 400–800V electrical system from becoming a lethal hazard to occupants and first responders.
Electrical Classification and Hazard Framework
ISO 6469 classifies vehicle electrical systems by voltage:
- Class A (low voltage): ≤60V DC / ≤30V AC — conventional 12V systems, EV low-voltage accessories
- Class B (high voltage): >60V DC / >30V AC — traction battery and drivetrain
The Class B system is the hazard domain. Human beings can tolerate up to approximately 60V DC without lethal consequence under dry contact conditions (the body resistance at that voltage limits current to non-fibrillating levels). Above 60V, ventricular fibrillation becomes possible, and above ~100V, lethal shock is a near-certainty with direct contact.
ISO 6469 requirements apply exclusively to Class B systems. All design measures — orange cables, isolation monitoring, HVIL, discharge requirements — target the Class B domain.
The floating design means a single insulation fault — from wire damage, moisture, or connector degradation — exposes only one HV rail to chassis potential, not a complete circuit. A person touching the vehicle chassis after a single fault completes no circuit through their body and receives no shock. In a chassis-grounded HV system, any single insulation fault creates an immediate shock hazard at all accessible chassis surfaces. The floating design provides single-fault tolerance; isolation monitoring detects the first fault before a second can develop into the double-fault condition that would create a lethal hazard.
Isolation Monitoring: The Continuous Guard
Isolation monitoring is one of the most critical ongoing safety functions in an EV. The high-voltage system is designed as a floating system — neither the positive nor negative terminal of the HV battery is connected to the vehicle chassis (unlike a petrol car where the 12V negative is grounded to chassis). This floating design means a single insulation fault (wire damage, moisture in a connector) exposes only one node to chassis, not a complete circuit — and therefore does not immediately create a shock hazard.
However, a second fault (common in degraded insulation) would complete a circuit through the chassis and create a lethal hazard. Isolation monitoring detects the first fault before a second can develop.

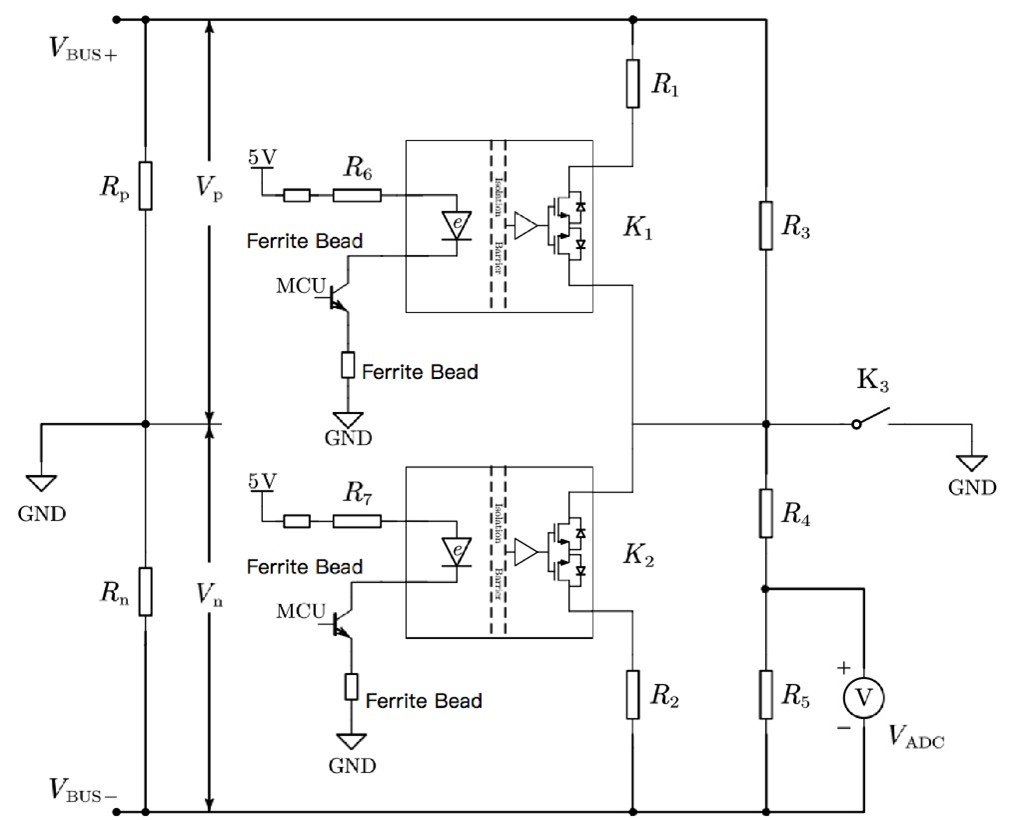

The measurement principle: The isolation monitoring unit periodically applies a small test voltage between the HV+ rail and chassis, and between HV- rail and chassis. The measured current indicates the resistance of the insulation to chassis. If either measurement falls below the 500 Ω/V threshold:
- For a 400V system: below 200 kΩ → alert required
- For a 800V system: below 400 kΩ → alert required
| Fault Level | Isolation Resistance | ISO 6469 Requirement | Practical Consequence |
|---|---|---|---|
| Healthy | >1 MΩ | Normal operation | No restriction |
| Warning | 200 kΩ – 500 kΩ (400V system) | Alert to driver | Continued operation permitted with warning |
| Fault | <200 kΩ (400V system) | BMS alert, system log | Some standards require HV disconnect |
| Critical | <50 kΩ | Immediate hazard possible | HV disconnect required |
False isolation fault alerts are a common reliability issue in Indian EVs. High ambient humidity, monsoon water ingress into connectors, and vibration-induced intermittent connections can create apparent isolation faults that clear when conditions change. A BMS that immediately opens the main contactors on every isolation alert creates a vehicle that cuts power unexpectedly in rain — a significant safety hazard. Isolation fault algorithms should apply hysteresis and time confirmation (fault must persist for >2–5 seconds before action) to reduce false positives.
The High Voltage Interlock Loop (HVIL)

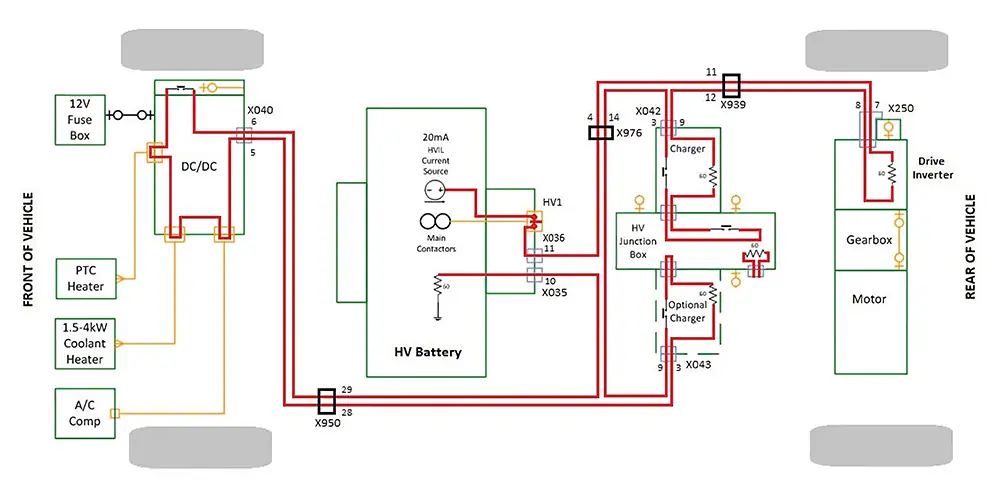

The HVIL is a loop of low-voltage signal wire that passes through every point where a service technician or accident responder might be exposed to high voltage:
- Every HV connector (battery-to-inverter, battery-to-DCDC, charger inlet)
- Service disconnect plug (manual service switch to isolate HV for maintenance)
- Every access cover that, if removed, exposes HV components
The HVIL circuit carries approximately 5–12V at a few milliamps. When all points are properly closed, the HVIL circuit is complete. The BMS monitors HVIL continuity. If any connection opens (connector unplugged, service plug removed, cover opened without proper procedure), the HVIL circuit opens. The BMS detects this within milliseconds and opens the main contactors.
HVIL design considerations:
- HVIL connectors must be designed so the HVIL pin breaks contact before the HV pins when disconnecting (early break, late make). This ensures HV is removed before physical HV exposure is possible.
- The HVIL circuit must be independent of the main HV system — it must function even if the HV system is faulted
- HVIL monitoring must be fast enough that the main contactors open before a technician's hand can reach exposed HV terminals after the connector begins to disengage (typically <50 ms requirement)
In a planned maintenance procedure, a qualified technician follows the service isolation procedure: switch off the vehicle, wait for the discharge timeout, remove the manual service disconnect plug in the correct sequence, and then verify HV absence with a meter before working. In this case the HVIL opening is intentional and expected. In an accidental connector pull during vehicle operation, the HVIL opens immediately, the BMS detects the open circuit within the required <50 ms window, and opens the main contactors before the disconnecting technician's hand can reach exposed HV terminals. The hardware response time requirement ensures protection even in the unplanned scenario.
Post-Crash Safety: The 60-Second Discharge
In a crash, the vehicle's ignition is typically off (or powered down by crash management). The HV system may remain energised for some time after the crash — the battery's main contactors may have opened (if crash detection is implemented), but the inverter's DC bus capacitors store significant energy and remain at high voltage.
ISO 6469-4 (Post-Crash Electrical Safety) requires:
- HV system to discharge to <60V within 60 seconds of vehicle power-off
- No live HV parts accessible from outside the vehicle within 5 minutes of a crash
- Vehicle markings indicating HV system locations for first responders
Discharge mechanisms:
- Passive discharge: High-ohm bleeder resistors across the DC bus capacitors. Simple and reliable. Typical time constant: 5–30 seconds depending on resistor value and capacitance.
- Active discharge: The inverter drives a controlled current through the motor windings to rapidly discharge the DC bus. Can achieve <5 seconds discharge. Requires inverter control electronics to remain operational after crash.
- Combination: Active discharge primary, passive bleed as backup if active fails.
The 60-second discharge requirement is often misunderstood as 60 seconds to de-energise the battery pack. The pack remains energised — the main contactors are closed or the disconnected state is managed by the BMS. The 60-second requirement is specifically for the inverter DC bus capacitance to discharge below the safe touch threshold. The battery pack remains at pack voltage; it is the bus capacitors (a few hundred joules) that must discharge, not the pack energy (tens of kWh).
A modern 400 V EV inverter's DC bus capacitance is typically 500–2,000 µF, storing E = ½CV² = 0.04–0.16 MJ at 400 V — a few hundred joules. The battery pack stores 30–100 kWh = 108–360 MJ. The 60-second discharge requirement applies only to the capacitor energy, because the main contactors isolate the pack from the bus. First responders working at the vehicle body are exposed to the capacitor voltage, not the full pack. This is why the discharge time is achievable in 5–60 seconds through passive bleed resistors — discharging the full pack in 60 seconds would require destructive power levels.
Orange Cable Requirements
ISO 6469-3 requires that all cables carrying Class B voltages (>60V DC) must be orange in colour, with distinctive orange insulation or orange conduit. This serves as:
- Visual identification for maintenance technicians (do not cut orange cables without HV isolation first)
- First responder identification (orange cables indicate HV routes to avoid in accident response)
- Quality control verification during assembly
Exception: Cables inside enclosed HV components (battery pack interior, inverter housing) do not require orange colour — the enclosure itself provides isolation. Orange is required only for cables that are accessible or routeable in the vehicle.
In Indian aftermarket EV modifications and non-certified battery replacements, orange cable requirements are frequently not followed. A modified EV with standard black cable colours replacing the original orange HV cables creates a hidden hazard for anyone servicing the vehicle. Mechanics unfamiliar with the modified wiring may cut or probe HV cables believing they are low-voltage. This is one of the safety cases for requiring AIS-038 type approval for battery pack replacements, not just original equipment.
Key Takeaways
- ISO 6469 classifies voltages above 60 V DC as Class B (high voltage) and applies all safety requirements — isolation monitoring, HVIL, discharge, orange cable identification — exclusively to this domain.
- The floating HV architecture provides single-fault tolerance; isolation monitoring at ≥ 500 Ω/V (200 kΩ minimum on a 400 V system) detects the first insulation degradation event before a second fault can create a lethal circuit.
- HVIL connectors must use an early-break pin sequence so HV is removed before physical HV terminal exposure becomes possible; detection-to-contactor-open response time must be under 50 ms.
- The 60-second discharge requirement applies to inverter DC bus capacitors (hundreds of joules), not the battery pack; active discharge through motor windings can achieve <5 seconds and passive bleed resistors are an acceptable alternative.
- Orange cable identification is mandatory for all accessible Class B wiring; non-certified Indian aftermarket EV modifications that omit orange colouring create hidden hazards for service technicians unfamiliar with modified wiring routes.
