The most dangerous BMS failure mode is not the one that trips the contactor — it is the one that silently accumulates SOC error until the battery cuts power without warning at 20% displayed charge.

TL;DRKey Points

The most common Indian commercial EV BMS failure is capacity fade neglect, causing 15–20% SOC over-reading by cycle 200 and unexpected power cuts.
Temperature sensor contact resistance degradation is an unsafe, silent failure mode amplified by Indian humidity and vibration conditions.
CAN bus timeout values from European reference designs frequently cause false faults in Indian commercial vehicle electrical environments.
Contactor welding detection requires a dedicated hardware voltage measurement point — designs that omit it for cost reduction create a latent high-voltage hazard.
NVM write timing failures and endurance exhaustion are both real production failure modes requiring specific firmware countermeasures.

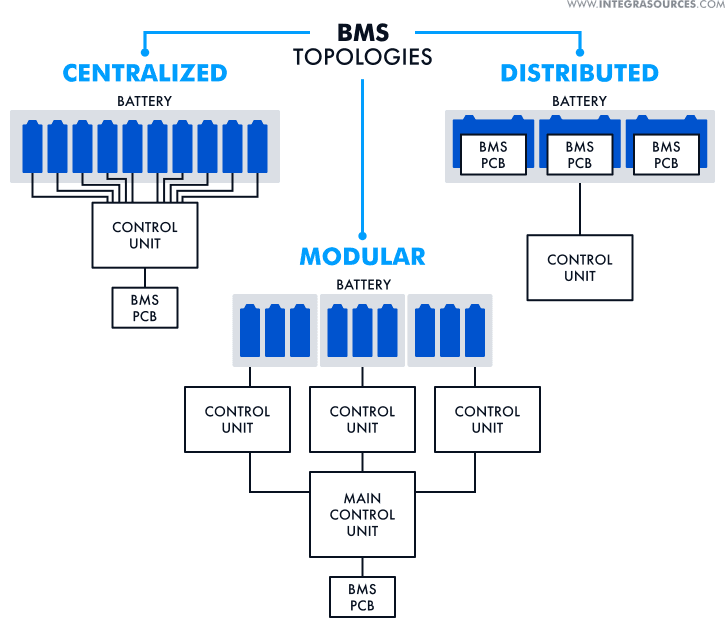

BMS block diagrams look clean because they represent the intended design. Real BMS implementations have gaps between design intent and execution — algorithm tuning that was never validated in Indian conditions, hardware that was specified for a different operating environment, firmware edge cases that were never triggered in testing but appear in production. This article covers the failure modes that show up in actual deployed systems, with specific causes and quantified consequences.

Most common field failure mode (Indian commercial EVs) | SOC over-reading at end of pack life | capacity fade neglect

Typical SOC error from capacity fade neglect (at 200 cycles, 45°C) | +15–20% | displayed vs actual

Pre-charge relay failure rate (poorly specified systems) | ~0.5–1% | within 2 years

Contactor welding event rate (1000A+ fault scenarios) | ~0.1–0.3% | per fault event

BMS firmware CAN timeout handling failure rate (field reports) | significant | in high-EMI Indian vehicles

Temperature sensor contact resistance failure (NTC thermistors) | common | in humid/vibration environments

Failure Mode 1: Capacity Fade Neglect (The Silent SOC Error)

This is the most operationally impactful failure mode in Indian commercial EV fleets, and arguably the most preventable.

Mechanism: The BMS stores Q_rated (battery capacity) at commissioning and never updates it. As the battery ages, actual capacity falls — 3–5% per 100 cycles at 45°C for NMC, 2–3% per 100 cycles for LFP. After 200 cycles at Indian summer conditions:

NMC: actual capacity ≈ 85–90% of rated
BMS still calculates SOC against original 100 Ah
Full-charge state corresponds to 85–90% displayed, not 100%

Consequence: The driver sees the battery never reaching 100%. More dangerously: at the displayed 20% (the low-battery warning threshold), the actual remaining capacity is 20% × 85/100 = 17%. At 10% displayed, actual is ~8.5%. The undervoltage protection triggers at a lower actual energy level than intended, leading to unexpected power cuts that feel like a sudden fault rather than a low battery.

Fix: Implement capacity estimation in the BMS — either through full-cycle calibration (measure energy in a complete discharge and update Q_rated) or through dual Kalman filter estimation. If full dual estimation is not implemented, at minimum force a full-cycle calibration every 30 cycles and update Q_rated in non-volatile memory.

Warning

Capacity fade neglect in the opposite direction — overestimating remaining capacity — is more dangerous and less common but does occur if the BMS applies aggressive fade compensation that overshoots. If the BMS believes the battery has degraded more than it actually has, SOC displays higher than actual at all charge levels. The driver has less real energy than displayed, and the car may cut power at 15% displayed SOC without warning. Any BMS applying automatic capacity correction must validate the correction before writing it — a single bad discharge cycle should not update Q_rated.

QWhy is capacity fade neglect the most operationally impactful BMS failure in Indian commercial fleets?

As NMC cells fade by 3–5% per 100 cycles at 45°C, the BMS continues calculating SOC against the original rated capacity. After 200 cycles, a battery at 85% actual capacity will show 85% when fully charged, and 20% displayed SOC corresponds to only ~17% actual. The gap between displayed and actual SOC grows progressively, leading to unexpected pack shutdowns that appear as sudden faults rather than predictable low-battery events. The fix — dual Kalman filter capacity estimation or periodic full-cycle calibration — is not implemented in most Indian commercial BMS designs.

Failure Mode 2: Temperature Sensor Degradation

NTC thermistors — the standard temperature sensor in EV battery packs — fail in two distinct ways with very different consequences:

Open circuit failure: High resistance or broken connection. The ADC reads the bias resistor network voltage without sensor loading — typically reads as -40°C or similar extreme. The BMS immediately faults and opens the contactors. This is safe. The vehicle is disabled but protected.

High contact resistance failure: The thermistor connection corrodes or the mechanical contact degrades, adding resistance in series with the sensor. The measured resistance is higher than the actual sensor resistance. Higher resistance maps to lower temperature in the BMS lookup table — the BMS thinks the pack is cooler than it is.

Consequences of the unsafe failure mode:

BMS allows charging at cold-temperature rates when cells are actually warm — acceptable
More critically: BMS does not trigger thermal derating during DC fast charging at 45°C ambient when cells are actually at 52°C — near the thermal runaway onset precursor temperatures for NMC 811

The high-contact-resistance failure mode is particularly prevalent in Indian conditions because of:

Monsoon humidity causing connector corrosion
Vibration from poor road surfaces loosening thermistor contacts
Thermal cycling (45°C day, 25°C night) causing fatigue in press-fit connections

Sensor Failure Mode	BMS Reading	Consequence	Detectability
Open circuit	-40°C or 150°C (rail)	Immediate hard fault, contactor opens	Easy — extreme value detection
High contact resistance	T_actual - ΔT (reads low)	Silent degradation, incorrect derating	Hard — value is plausible
Sensor drift over time	Slowly increasing offset	Gradual derating failure	Very hard without cross-checking
Short to ground	Fixed voltage → wrong temperature	Plausible reading, no alarm	Hard — requires validation

/* Watchdog timer -- if BMS task hangs, MCU resets safely */
#include <stdint.h>

#define WDT_TIMEOUT_MS   50U    /* 50 ms window -- BMS must kick every cycle */
#define SAFE_STATE_FLAGS 0xFF   /* disconnect contactors on WDT reset */

static volatile uint32_t wdt_kick_count = 0;

void bms_task_main(void) {
    while (1) {
        process_sensor_data();
        run_protection_algorithms();
        transmit_can_status();
        kick_watchdog();            /* must reach here within 50 ms */
        vTaskDelayUntil(&last_wake, pdMS_TO_TICKS(10));
    }
}

void kick_watchdog(void) {
    wdt_kick_count++;
    WDT->RR = 0x6E524635;         /* reset sequence for nRF52 WDT */
}

/* On WDT expiry -- hardware calls this via NMI */
void WDT_IRQHandler(void) {
    open_main_contactors();        /* safe-state before reset */
    log_fault_to_eeprom(FAULT_WDT_TIMEOUT);
}

QWhy is the high-contact-resistance temperature sensor failure mode more dangerous than an open-circuit failure?

An open-circuit NTC sensor reads an extreme value (-40°C or 150°C) that the BMS immediately recognises as impossible and faults safely, opening the contactors. A degraded high-resistance contact reads a temperature that is plausibly cool — perhaps 10°C lower than actual. The BMS accepts this reading as valid and continues operating. During DC fast charging at 45°C ambient, the BMS may allow full charge current when cells are actually at 52°C, approaching the thermal derating threshold, because it believes they are at 42°C. This silent incorrect reading actively undermines the thermal protection function.

Failure Mode 3: CAN Bus Communication Failures

The BMS communicates with the Vehicle Control Unit (VCU) and on-board charger (OBC) over CAN bus. In a controlled lab environment with short, properly terminated wiring, CAN is highly reliable. In an Indian commercial vehicle with 5+ metre cable runs, multiple connectors, alternator noise, and intermittent electrical supply, CAN communication faults are frequent.

Symptom 1: Missing VCU heartbeat timeout. The BMS expects a VCU heartbeat message every 50–100 ms. If missing for 200 ms, the BMS assumes a VCU fault and opens the contactors. In a vehicle with intermittent CAN bus quality, this causes random power cuts — experienced by the driver as an inexplicable shutdown. Root cause: BMS timeout handling that was specified for a clean automotive electrical environment.

Symptom 2: Charger communication loss during fast charging. DC fast charging requires continuous BMS-charger communication. A 200 ms communication gap causes the charger to fault and stop charging. In a roadside Indian charger with unstable power supply, this is common. The result: charging session aborted at 60% SOC, driver waits for restart. Not a safety issue but a severe reliability issue.

Symptom 3: SOC display corruption. If the BMS sends SOC over CAN and the CAN message is corrupted without detection, the dashboard can display a wrong SOC. Most CAN frames include a CRC for error detection — but if the CRC implementation has bugs (not uncommon in cost-optimised BMS firmware), corrupted values can reach the display.

Note

The CAN bus timeout values in BMS firmware are almost never tuned for Indian vehicle electrical environments at the design stage. They are typically copied from a reference design that was developed for European vehicles with clean electrical architectures. For Indian commercial EVs, timeout values should be validated in the actual vehicle electrical environment, with the alternator running and all accessories powered, over a range of road conditions. This requires field testing, not just lab testing.

/* CAN communication timeout detection */
#define CAN_CHARGER_TIMEOUT_MS  500U
#define CAN_VCU_TIMEOUT_MS      200U

typedef struct {
    uint32_t last_rx_tick;
    uint8_t  timeout_fault;
} CanNodeState_t;

static CanNodeState_t charger_node = {0};
static CanNodeState_t vcu_node     = {0};

void can_rx_charger_callback(void) {
    charger_node.last_rx_tick  = HAL_GetTick();
    charger_node.timeout_fault = 0;
}

void bms_check_can_timeouts(void) {
    uint32_t now = HAL_GetTick();
    if ((now - charger_node.last_rx_tick) > CAN_CHARGER_TIMEOUT_MS) {
        charger_node.timeout_fault = 1;
        set_fault(FAULT_CHARGER_CAN_TIMEOUT);
        stop_charging();
    }
    if ((now - vcu_node.last_rx_tick) > CAN_VCU_TIMEOUT_MS) {
        vcu_node.timeout_fault = 1;
        set_fault(FAULT_VCU_CAN_TIMEOUT);
        enter_safe_state();
    }
}

Failure Mode 4: Contactor Welding and Verification Failures

Main contactors are electromechanical relays rated for the full pack voltage and maximum current. Under fault conditions — an external short circuit, inverter IGBT failure, or wiring fault — the contactor must interrupt currents of hundreds to thousands of amps.

Welding mechanism: At high interrupt current, the arc drawn when the contacts open can deposit metal and weld the contacts together. Once welded, the contactor cannot open. The battery remains connected to the vehicle at all times — including during maintenance, accident response, and the next charge cycle.

BMS detection: The BMS must monitor the battery-side voltage after commanding the main contactor open. If voltage remains present, the positive contactor is welded. If battery-side negative is still connected, the negative contactor is welded. This requires a dedicated voltage measurement point between the main contactor and the vehicle.

A common cost-cutting decision in budget BMS designs: omit the inter-contactor voltage measurement and rely solely on contactor coil current monitoring. Coil current tells you whether the relay was commanded correctly — not whether the contacts actually opened. A welded contactor with correct coil current will be missed.

◆

Key Insight

Contactor welding detection is a safety-critical function that requires hardware investment — a voltage measurement point between the main contactor and the vehicle. This cannot be omitted for cost reduction without degrading the BMS's ability to detect a latent high-voltage hazard. AIS-156 does not explicitly mandate welding detection, but it does require isolation monitoring, which effectively detects the symptom (unexpected HV connection to chassis) if not the cause.

Failure Mode 5: Balancing Algorithm Gaps

Cell balancing failures are not safety-critical but are major drivers of premature pack replacement in Indian commercial EV fleets.

Common balancing algorithm defect 1: Balancing only during constant-voltage phase. The BMS activates balancing resistors only during the CV (constant voltage) phase of charging — the last few percent before full charge. For cells with significant imbalance (>5% SOC difference), the CV phase may be too short to complete balancing. The pack ends each charging session with residual imbalance, which compounds over time.

Common balancing algorithm defect 2: Balancing threshold too tight. A 3 mV balance threshold means balancing activates when cells differ by 3 mV. But a 3 mV difference in NMC represents approximately 1% SOC at mid-range — not meaningful. The appropriate threshold depends on the OCV slope at the current SOC point. Using a fixed mV threshold rather than a SOC-equivalent threshold causes over-balancing at high-slope regions and under-balancing at flat-slope regions.

Common balancing algorithm defect 3: No balancing health tracking. The balancing resistors themselves have a maximum power rating and thermal limits. BMS designs that do not track balancing FET temperatures or duty cycles can exceed the thermal rating of the balancing circuit, causing BMS board failures that appear as mysterious intermittent faults.

QWhat makes contactor welding detection so critical, and why do budget designs skip it?

A welded main contactor cannot isolate the battery from the vehicle — creating a permanent high-voltage connection that endangers maintenance personnel, accident responders, and future users who believe the battery is safely disconnected. Detection requires a voltage measurement point between the main contactor and the vehicle, separate from the battery-side. This adds a dedicated ADC input, voltage divider network, and firmware logic — modest cost but enough for budget BMS designers to omit it. AIS-156 does not explicitly mandate contactor welding detection, which allows the omission to pass certification while leaving the safety gap.

Failure Mode 6: Non-Volatile Memory Write Failures

The BMS must persist critical data — SOC, SOH, fault history, calibration parameters — through power cycles. This data is stored in non-volatile memory (typically EEPROM or flash). Two failure patterns:

Write timing failures: The BMS writes NVM on power-down. If power fails suddenly (blown fuse, loose connection), the write does not complete. On next power-up, the BMS reads corrupted or zero-initialised NVM — restarting SOC from 50% (a common default) regardless of actual state. The user sees a sudden SOC jump.

Write endurance exhaustion: Flash memory has a limited write cycle count (typically 10,000–100,000 for automotive-grade flash). A BMS that writes SOC every 10 seconds will exhaust flash endurance in 3–30 months depending on memory type. Write frequency must be balanced against endurance budget — writing every 10 minutes is typically adequate for operational continuity without exhausting endurance within the vehicle lifetime.

Key Takeaways

✦Key Takeaways

The most impactful Indian commercial EV BMS failure is capacity fade neglect — the BMS calculates SOC against original rated capacity, causing SOC over-reading of 15–20% by cycle 200 in hot conditions. This leads to unexpected power cuts and premature battery retirement.
Temperature sensor degradation through contact resistance increase is an unsafe, hard-to-detect failure mode specific to Indian humidity and vibration conditions. Cross-validation between adjacent sensors and periodic sensor health checks are necessary mitigations.
CAN bus timeout values specified for European automotive environments frequently cause false faults in Indian commercial vehicles. Field validation of CAN timeout behaviour in actual vehicle electrical conditions is required.
Contactor welding detection requires a dedicated hardware voltage measurement point. BMS designs that omit this for cost reduction create a latent high-voltage safety hazard that neither the BMS nor the user can detect.
NVM write timing failures (on unexpected power loss) and write endurance exhaustion are both real failure modes. Production BMS firmware must implement periodic in-drive writes and write frequency limits appropriate to the flash endurance specification.

Part of the bms-design Series

← PreviousWhat's Actually Spinning Inside Your EV — And Why It Never Needs an Oil Change Next →Prismatic, Cylindrical, or Pouch — Why Cell Format Determines Pack Architecture

Written by

Sai Chaitanya Dasari

Battery Systems Engineer · Volvo Eicher Commercial Vehicles

3+ years in commercial EV pack development. Writing about real battery engineering from the bench.

Frequently Asked Questions

What is the most common BMS failure mode in Indian commercial EVs?

Based on field reports and warranty analysis from Indian commercial EV fleets, the most common failure mode is SOC over-reading due to capacity fade neglect — the BMS calculates SOC against the original rated capacity, but the battery has degraded to 80–85% of original. This causes the vehicle to indicate 15–20% charge when the battery is actually empty, leading to unexpected power cuts. The fix is dual estimation (tracking actual capacity) or periodic forced full-cycle calibration. Neither is standard practice in most Indian commercial EV BMS designs.

How do temperature sensor failures manifest in BMS behaviour?

An open-circuit temperature sensor (broken connection) typically reads as the ADC's rail voltage — the BMS sees an impossible temperature like -40°C or +150°C, triggers an immediate fault, and opens the contactors. This is a safe failure. A degraded sensor with high contact resistance reads a temperature lower than actual — the BMS thinks the pack is cooler than it is, allows faster charging than is safe, and does not trigger thermal derating when needed. This is an unsafe failure mode that is much harder to detect and can cause accelerated degradation or thermal events.

What is the pre-charge relay and what happens when it fails?

The pre-charge relay and resistor form a circuit that limits inrush current when the high-voltage bus capacitance (inverter DC bus capacitors) first connects to the battery. Without pre-charge, the capacitors charge instantaneously, drawing thousands of amps for microseconds — welding the main contactor contacts. The pre-charge relay and resistor slow this process to ~100–500 ms. A common failure mode is the pre-charge relay sticking closed — the BMS thinks pre-charge completed and opens the relay, but if the pre-charge relay is welded, the main contactor may still see inrush on the next cycle. BMS firmware must verify pre-charge completion by checking bus voltage rise rate and timing.

Why do BMS designs fail in vehicles with poor CAN bus quality?

BMS firmware typically assumes reliable CAN communication with the vehicle controller (VCU) and charger. In Indian commercial vehicles with long wiring harnesses, poor termination, and high EMI environments, CAN messages are frequently delayed, corrupted, or lost. A BMS that treats a missing VCU heartbeat as a fault and opens the contactors causes unexpected power cuts. A BMS that continues operating without VCU oversight removes the safety coordination that prevents charging at unsafe temperatures or discharging beyond safe limits. Both failure modes are common, and BMS firmware timeout handling and fallback states are frequently inadequately specified for Indian vehicle electrical environments.

What is contactor welding and how does the BMS detect it?

Contactor welding occurs when the contacts fuse together under high fault current, preventing the relay from opening. A welded main contactor means the battery cannot be safely isolated from the vehicle. BMS contactor welding detection monitors the main bus voltage when the contactors should be open — if voltage is still present after the open command, one or both contactors are welded. Detection requires a voltage measurement point on the battery-side of the contactors, separate from the vehicle-side. Many cost-optimised BMS designs omit this measurement, making welding detection impossible and creating a latent safety risk.
